Mouthpieces Gallery

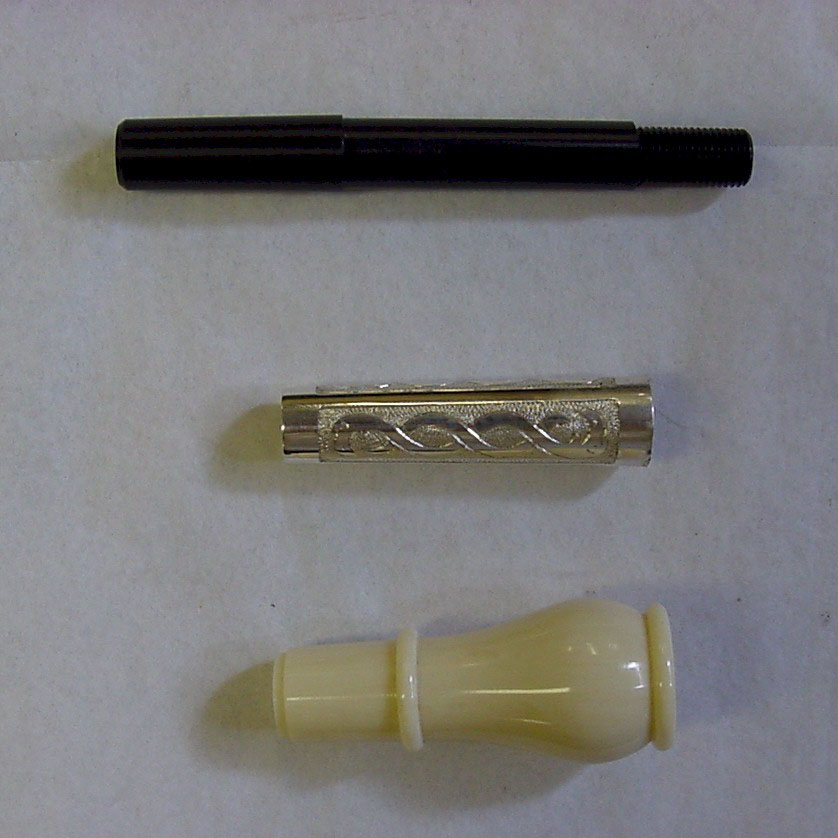

mouthpiece3.JPG (64854 bytes)  Here are the three pieces that make up our fancy mouthpieces. The black tip inserts into the narrow part of the silver sleeve, which then clamps onto the bulb by screwing the tip into the bulb. High Resolution

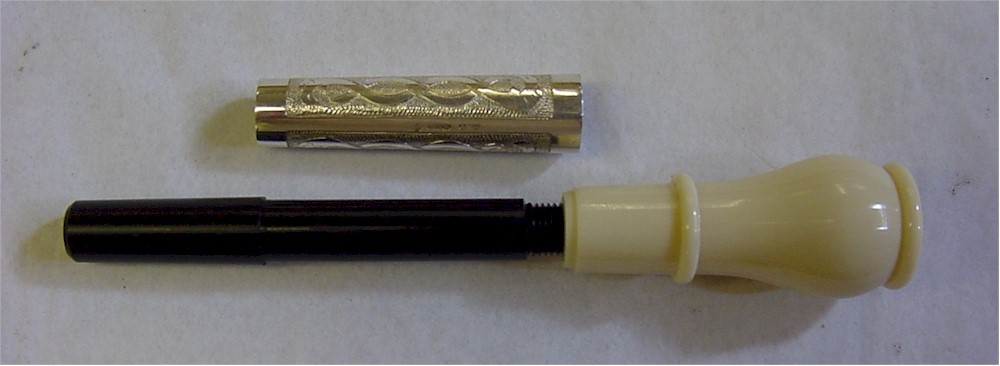

mp2piece.JPG (55327 bytes)  This shows the tip screwed into the top of the bulb, without the tube. This design protects the art. ivory or ivory from the moisture from one's breath. It also allows us to make the tip so it forms a continuous line from tip down to bulb. On cheaply made mouthpieces one will see that the tube has just been slipped onto the tip from above. High Resolution

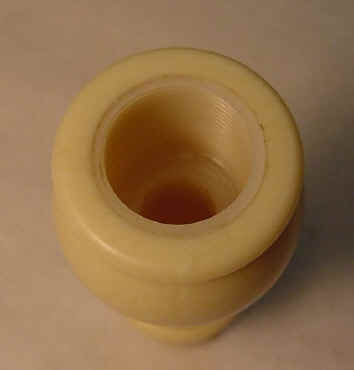

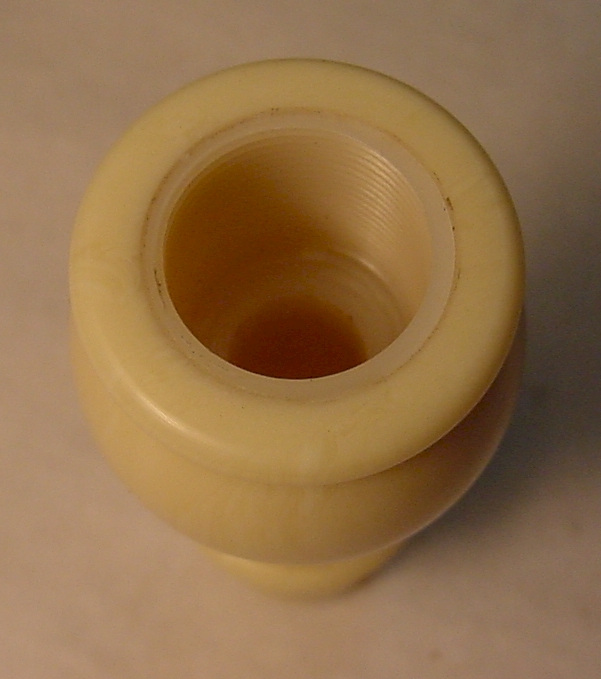

bulbbotthread.JPG (38354 bytes)  This shot shows the delrin sleeve which runs the length of the art. ivory bulb. The sleeve is the little ring inside the larger bit of art. ivory. This sleeve gives strength to the mouthpiece, while allowing us still to use the prettier art. ivory instead of the ugly but strong white delrin. The outside of the sleeve is threaded into the art. ivory, which prevents it from slipping out. The inside of the sleeve holds a standard mouthpiece thread. High Resolution

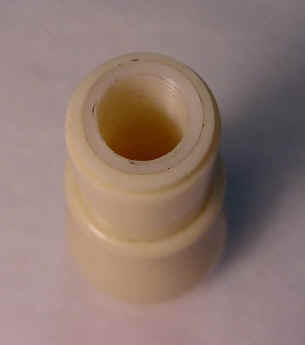

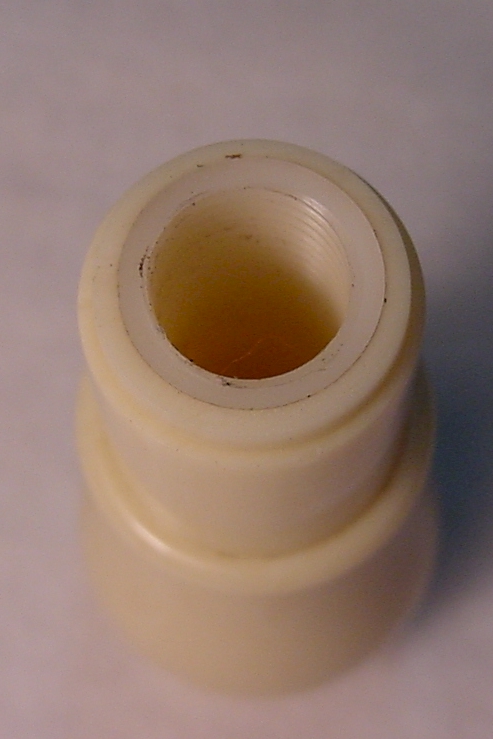

bulbtopthread.JPG (41780 bytes)  This shot shows the delrin sleeve at the top of the mouthpiece bulb. There is a thread in this end to accept the mouth tip, which is inserted into the mouth tube and then screwed into the top of the bulb here. There is a little shelf clearly seen at the top of the art. ivory bulb. That is where the mouth tube seats. High Resolution

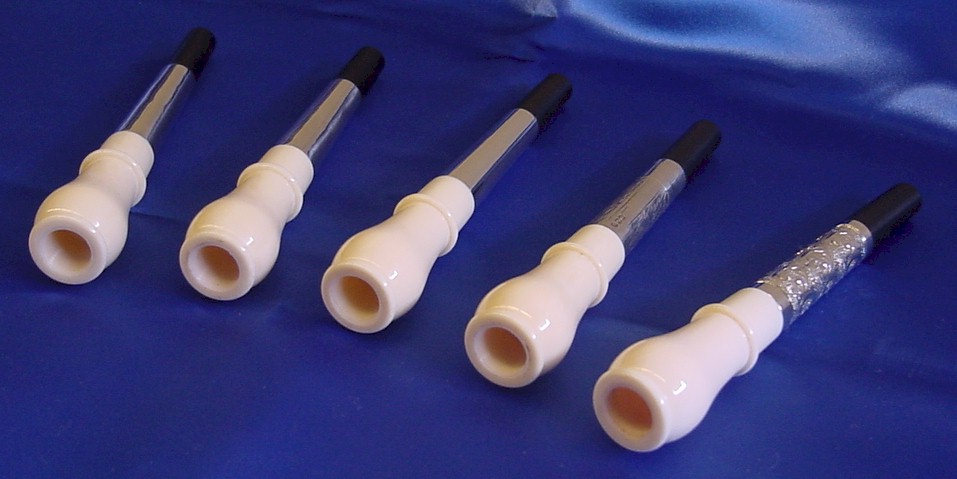

View of five fancy mouthpieces. 83 kb.
View of our ordinary delrin mouthpieces.

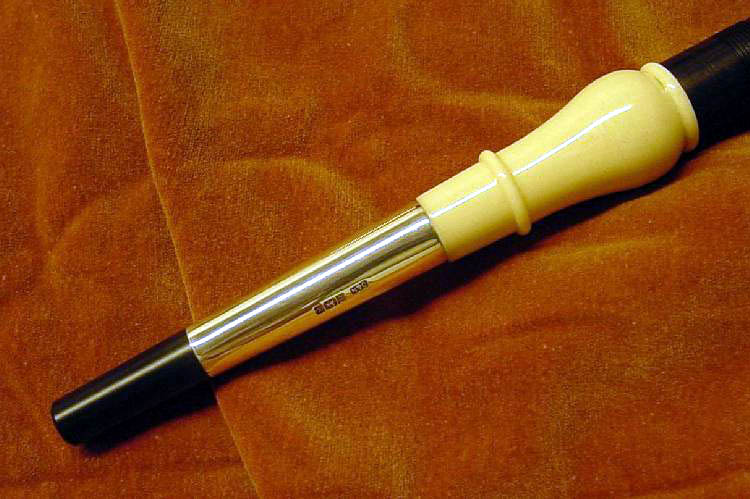

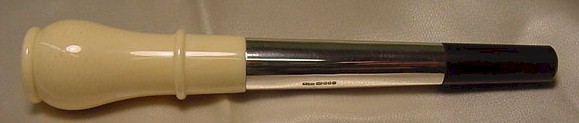

mpaissplain.jpg (64433 bytes)mpartivorybulbplain.jpg (17744 bytes)Mouthpieces with plain sterling mouth tube and art. ivory bulb. These are made just like the one detailed above, but with no engraving on the silver.

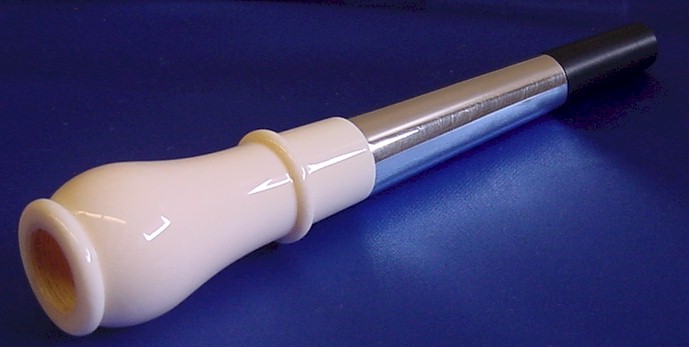

Ivory bulb with plain silver mouth tube.

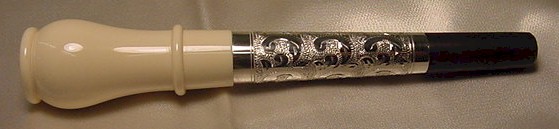

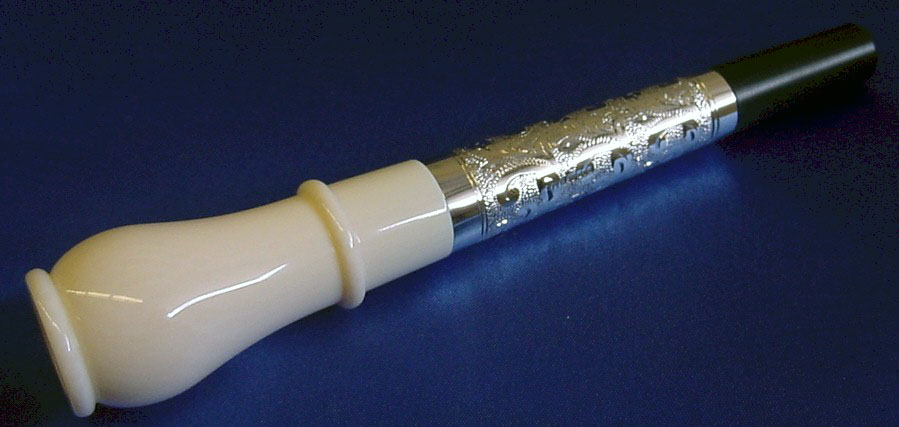

Ivory bulb with engraved silver mouth tube.

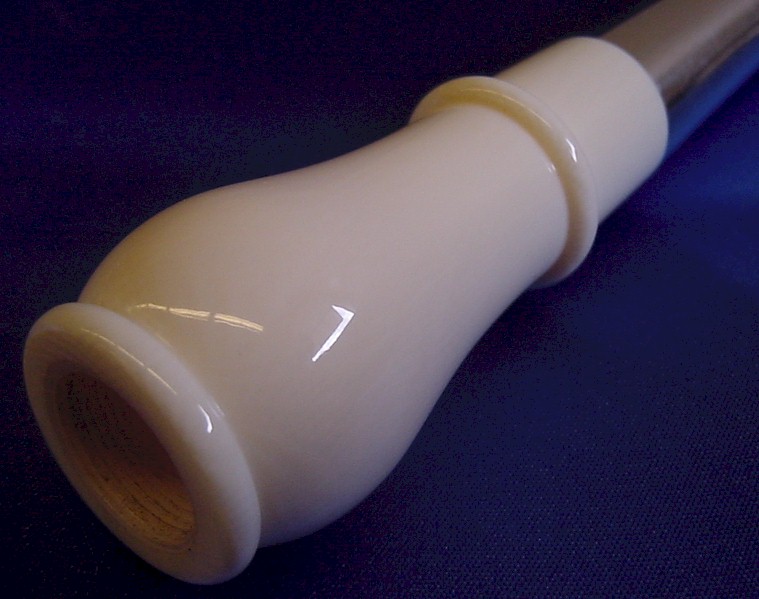

Close-up of the beautiful ivory. 88 kb

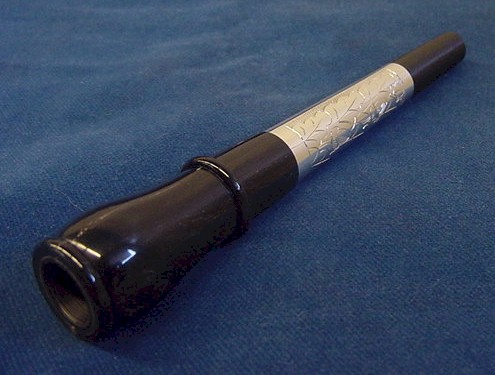

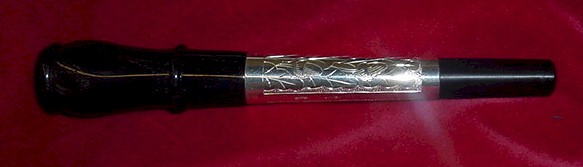

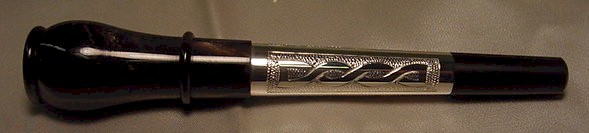

Silver & Horn Mouthpiece

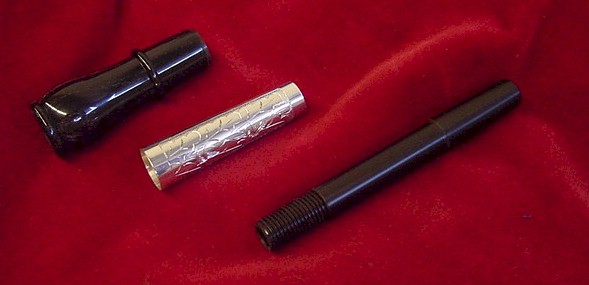

In its components
With the tip unscrewed and removed

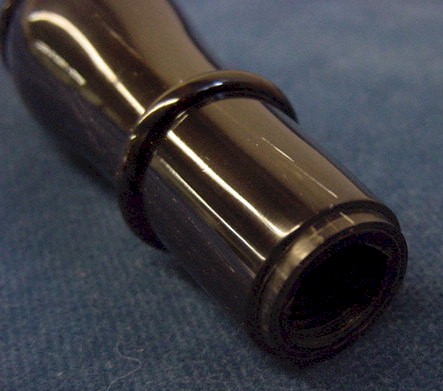

close-up of top of bulb

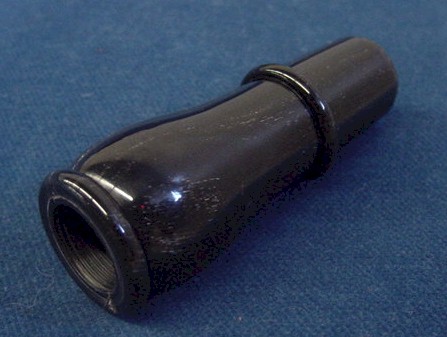

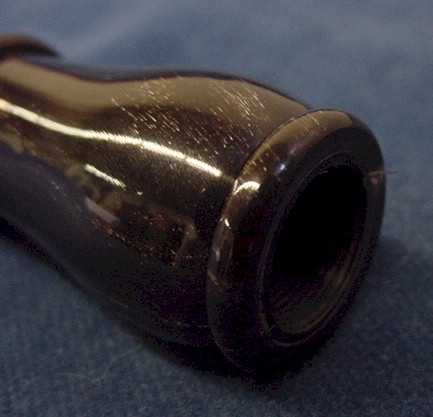

close-up of bottom of bulb
